PME271M/E is an EMI suppressor, classes X1 and X2, metallized paper with rated voltage 275/300 VAC, capacitance range 0.001-0.6 µF, temperature range -40/+110°C. It is constructed with multi-layer metallized paper and encapsulated and impregnated in self-extinguishing material that meets the requirements of UL 94V-0.

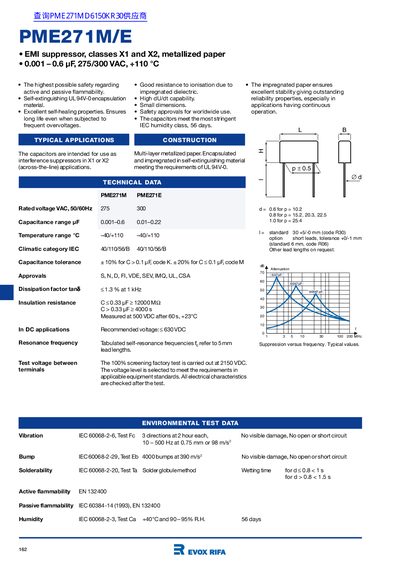

This document provides technical data for the Evox Rifa PME271M/E series of multi-layer metallized paper capacitors. These components are designed for use as interference suppressors in across-the-line applications, offering high safety regarding active and passive flammability with UL 94V-0 encapsulation.
| EMI Suppressor Classes | X1 and X2 |
|---|---|
| Rated Voltage (Class X2) | 275 VAC, +110°C |
| Rated Voltage (Class X1) | 300 VAC, +110°C |
| Capacitance Range (X2) | 0.001 - 0.6 nF |
| Insulation Resistance (C > 0.33 µF) | ≥ 4000 MΩ |
The capacitors meet the requirements of IEC 60384-14 (1993), EN 132400.
The recommended voltage is 630 VDC.
