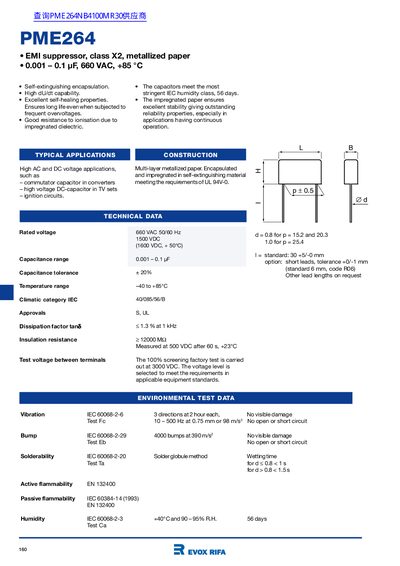

Evox Rifa PME264 Series EMI Suppressor Datasheet
Datasheet 2 pages · 44 KB · EN
This document is a technical datasheet for the Evox Rifa PME264 series of EMI suppressor capacitors. These are Class X2, metallized paper capacitors designed for high AC and DC voltage applications, such as commutator capacitors in converters and ignition circuits. The series features self-extinguishing encapsulation and meets stringent IEC humidity class requirements.
Read onlineEVOX PME264 specifications
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 uF |
| Temperature Range | -40 to +85°C |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MΩ |
| Test Voltage | 3000 VDC |
All EVOX PME264 documents by type
Datasheet 14
Ratings, dimensions and ordering codes, for selection and design work.
- Evox Rifa PME264 Series EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 Series X2 EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 Metallized Paper Capacitor Datasheet 2 p
- Evox Rifa PME264 Series EMI Suppressor Capacitor Datasheet 2 p
- Evox Rifa PME264 Metallized Paper Capacitor Datasheet 2 p
- Evox Rifa PME264 Series EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 Series EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 Series EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 Series EMI Suppressor Datasheet 2 p
- Evox Rifa PME264 Series Metallized Paper Capacitor Datasheet 2 p
- Evox Rifa PME264 EMI Suppressor Datasheet 2 p
Questions answered in these manuals
What is the capacitance tolerance for PME264 capacitors?
The capacitance tolerance is +20%.
What is the standard lead length for these capacitors?
The standard lead length is 30 mm (+5/-0 mm).
What is the test voltage for these capacitors?
The factory test is carried out at 3000 VDC.
What are the humidity test conditions?
The capacitors undergo a humidity test at +40°C and 90-95% R.H. for 56 days.
What is the rated voltage of the PME264 EMI suppressor?
The rated voltage is 660 VAC at 50/60 Hz and 1500 VDC.
What is the capacitance range for this capacitor?
The capacitance range is 0.001 to 0.1 microfarads.
