This document describes the PME264 EMI suppressor. It is suitable for high AC and DC voltage applications, such as commutator capacitors in converters, high voltage DC capacitors in TV sets, and ignition circuits. It has high dU/dt capability and excellent self-healing properties.

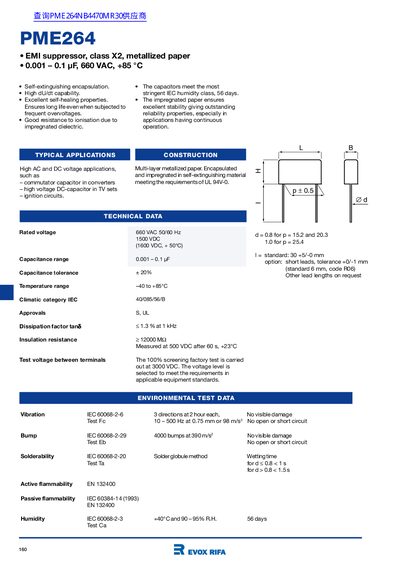

This document is a technical datasheet for the Evox Rifa PME264 series of EMI suppressor capacitors. These are Class X2, metallized paper capacitors designed for high voltage DC and AC applications, such as commutator capacitors in converters and ignition circuits. The components feature self-extinguishing encapsulation and excellent self-healing properties to ensure long life and reliability under frequent overvoltages.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 µF |
| Capacitance Tolerance | + 20% |
| Temperature Range | -40 to +85°C |
| Climatic Category | IEC 40/085/56/B |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MΩ |
| Test Voltage | 3000 VDC |
The rated voltage is 660 VAC at 50/60 Hz or 1500 VDC.
The capacitance range is 0.001 to 0.1 microfarads.
The temperature range is from -40 to +85 degrees Celsius.
