This document describes an EMI suppressor, which is a class X2 metallized paper capacitor suitable for high AC and DC voltage applications. It has high dU/dt capability and self-healing characteristics. It is suitable for commutator capacitors in converters, high voltage DC capacitors in TV sets, and ignition circuits.

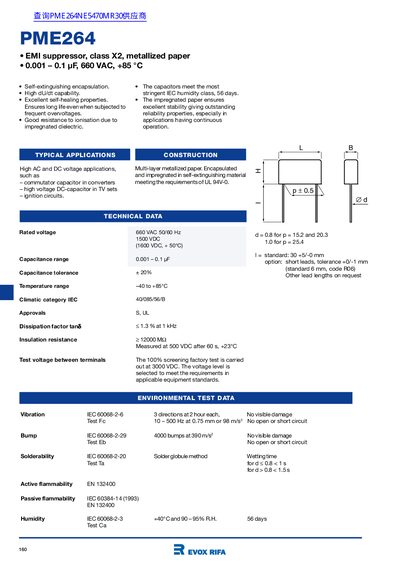

This document provides technical data for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as Class X2 EMI suppressors with a rated voltage of 660 VAC (1500 VDC) and excellent self-healing properties suitable for high-voltage DC applications in TV sets and ignition circuits.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC (1600 VDC, + 50°C) |
| Capacitance Range | 0.001 - 0.1 UF |
| Temperature Range | -40 to +85°C |
| Dissipation Factor | < 2.13 % at 1 kHz |
The rated voltage is 660 VAC at 50/60 Hz or 1500 VDC.
The capacitance range is 0.001 to 0.1 microfarads.
The temperature range is from -40 to +85 degrees Celsius.
