The document describes the features and characteristics of an EMI suppressor product. The product is capable of high AC and DC voltage applications and is suitable for use as a commutator capacitor in power converters, high voltage DC-capacitor in TV sets, and ignition circuits. It is constructed with multi-layer metallized paper and encapsulated and impregnated in self-extinguishing material meeting UL 94V-0 requirements. The product has high voltage rating, temperature range, humidity resistance, and vibration resistance, and has passed relevant certification standards.

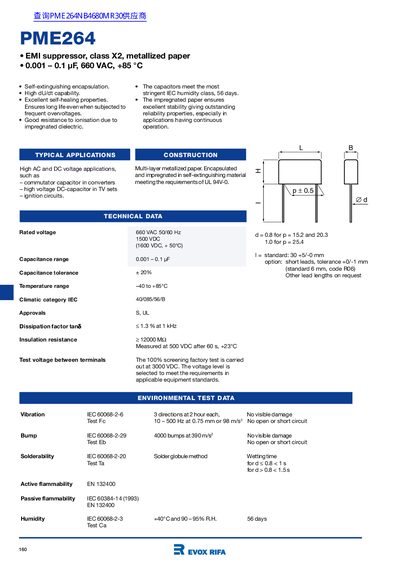

This document is a technical datasheet for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as Class X2 EMI suppressors with a rated voltage of 660 VAC and a temperature range of -40 to +85°C. They feature self-extinguishing encapsulation and meet stringent IEC humidity class requirements.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 uF |
| Temperature Range | -40 to +85°C |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MΩ |
| Test Voltage | 3000 VDC |
| Flammability Class | UL 94V-0 |
The capacitance tolerance is +20%.
The standard lead length is 30 mm, with an option for short leads of 6 mm.
The capacitors must withstand +40°C and 90-95% R.H. for 56 days.
