The document describes an EMI suppressor, which is a class X2 metallized paper capacitor suitable for high AC and DC voltage applications. It has high dU/dt capability and excellent self-healing performance, making it suitable for applications such as commutator capacitor in converters, high voltage DC-capacitor in TV sets, and ignition circuits.

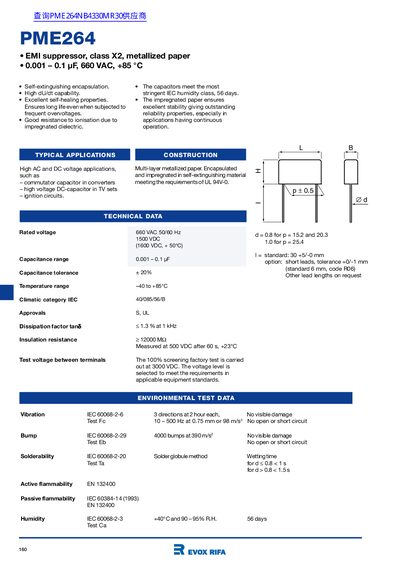

This document is a technical datasheet for the Evox Rifa PME264 series of EMI suppressor capacitors. These are Class X2, metallized paper capacitors designed for high AC and DC voltage applications, such as commutator capacitors in converters and ignition circuits. The components feature self-extinguishing encapsulation and excellent self-healing properties to ensure long life and reliability under frequent overvoltages.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 uF |
| Capacitance Tolerance | + 20% |
| Temperature Range | -40 to +85°C |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MΩ |
| Test Voltage | 3000 VDC |
The climatic category is IEC 40/085/56/B.
The capacitors meet approvals S and UL.
The maximum du/dt capability is 2000 V/s for most capacitance values.
