PME264 is a high voltage EMI suppressor from Kemet. It has a rated voltage of 660 VAC 50/60 Hz and a capacitance range of 0.001 – 0.1 µF. The product is rated for operation at temperatures of –40 to +85°C. It has self-extinguishing encapsulation, high dU/dt capability and excellent self-healing properties.

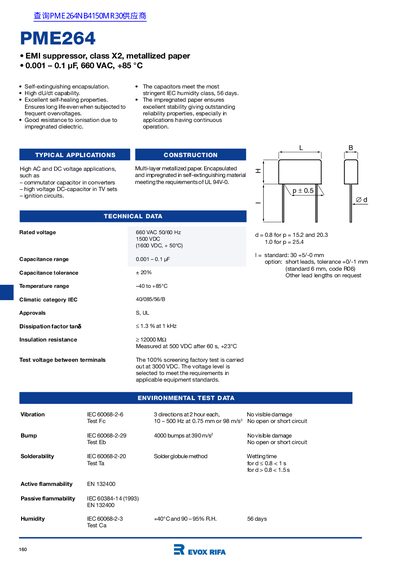

This document is a technical datasheet for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as Class X2 EMI suppressors with self-extinguishing encapsulation and high dU/dt capability, suitable for applications such as commutator capacitors in converters and ignition circuits.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC (1600 VDC, + 50°C) |
| Capacitance Range | 0.001 - 0.1 UF |
| Temperature Range | -40 to +85°C |
| Climatic Category | IEC 40/085/56/B |
| Dissipation Factor (tanδ) | 21.3 % at 1 kHz |
The factory test is carried out at 3000 VDC.
The capacitors undergo a humidity test at +40°C and 90-95% R.H. for 56 days.
