The document introduces the PME271M/E model of EMI suppressor, which is suitable for X1 or X2 (across-the-line) applications. It has a capacitance range of 0.001-0.6µF, rated voltage of 275/300VAC, and a temperature range of +110°C. The product uses a multi-layer metallized paper dielectric, encapsulated and impregnated in self-extinguishing material that meets the requirements of UL 94V-0. It has good electrical performance and environmental adaptability.

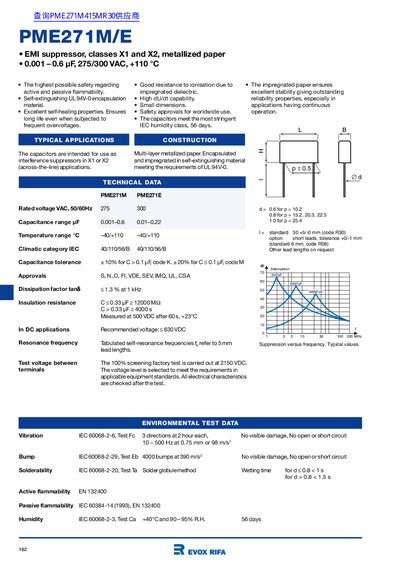

This document provides technical specifications and ordering information for the EVOX RIFA PME271M/E series of multi-layer metallized paper capacitors. These components are designed for use as interference suppressors in across-the-line applications, offering high safety and reliability.
| Dielectric Material | Metallized paper |
|---|---|
| Capacitance Range (X2) | 0.001 - 0.6 nF |
| Capacitance Range (X1) | 0.01 - 0.22 nF |
| Passive Flammability | UL 94V-0 |
| Self-Healing Properties | Excellent |
The recommended voltage is 630 VDC.
The PME271M model is rated for 275 VAC with a capacitance range of 0.001 to 0.6 nF, while the PME271E model is rated for 300 VAC with a capacitance range of 0.01 to 0.22 nF.
