PME264 is an EMI suppressor produced by Kingsan Electric with a rated voltage of 660 VAC 50/60 Hz, a rated capacitance of 0.001-0.1 μF, and a rated temperature of -40 to +85°C. PME264 has self-extinguishing encapsulation, high dU/dt capability and excellent self-healing capability.

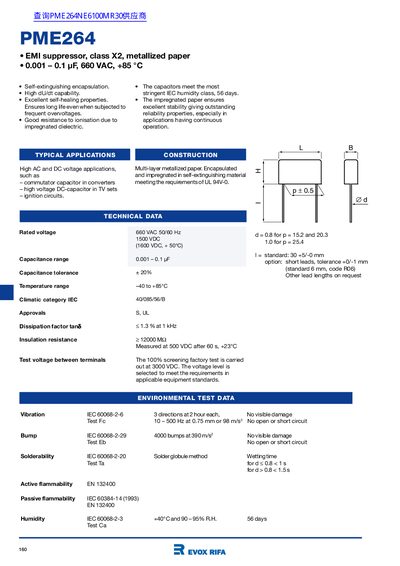

This document provides technical specifications for the Evox Rifa PME264 series, which are Class X2 metallized paper capacitors designed for EMI suppression. The components feature a self-extinguishing encapsulation and are suitable for high voltage DC applications in TV sets and ignition circuits, as well as commutator capacitors in converters.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 uF |
| Capacitance Tolerance | + 20% |
| Temperature Range | -40 to +85°C |
| Climatic Category | IEC 40/085/56/B |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MΩ |
| Test Voltage | 3000 VDC |
The capacitors operate in a temperature range of -40 to +85°C.
The dissipation factor is 21.3% at 1 kHz.
The capacitance tolerance is + 20%.
The capacitors meet approvals S and UL.
