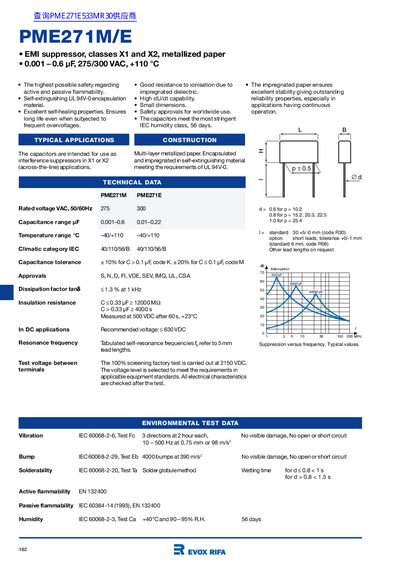

This document provides technical data, typical applications, and environmental test details for the Evox Rifa PME271M/E series. The capacitors are designed for use as interference suppressors in across-the-line (X1 or X2) applications, featuring multi-layer metallized paper construction impregnated in self-extinguishing material.
| EMI Suppressor Classes | X1 and X2 |
|---|---|
| Rated Voltage (Class X2) | 275 VAC |
| Rated Voltage (Class X1) | 300 VAC |
| Capacitance Range (X2) | 0.001 - 0.6 nF |
| Passive Flammability Class | UL 94V-0 |
The capacitors are available with rated voltages of 275 VAC or 300 VAC.
The climatic category humidity test is conducted for 56 days.
