PME271M/E is an EMI suppressor produced by Schneider Electric. The rated voltage is 275/300 VAC and the rated capacitance is 0.001-0.6 µF. The operating temperature range is -40/+110 °C. The product is made of multilayer metallized paper and has self-extinguishing properties, meeting UL 94V-0 standards.

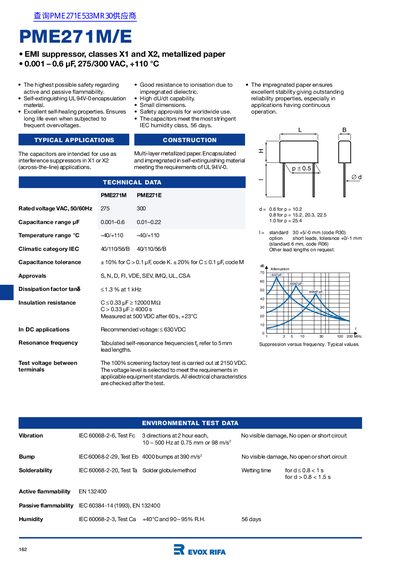

This document provides technical data and specifications for the EVOX RIFA PME271M/E series of multi-layer metallized paper capacitors. These components are designed for use as interference suppressors in X1 and X2 (across-the-line) applications, featuring self-extinguishing UL 94V-0 encapsulation and excellent stability.
| Dielectric Material | Metallized paper |
|---|---|
| Rated Voltage Range | 275/300 VAC |
| Capacitance Range | 0.001 - 0.6 nF |
| Flammability Class | UL 94V-0 |
| Dissipation Factor (tanδ) | < 1.3 % at 1 kHz |
| Insulation Resistance | ≥ 12000 MΩ (Cs≤0.33 µF) |
| Test Voltage | 2150 VDC |
They are intended for use as interference suppressors in X1 or X2 and across-the-line applications.
The recommended voltage for DC applications is 630 VDC.
The capacitors meet approvals including S, N, D, FI, VDE, SEV, IMQ, UL, and CSA.
