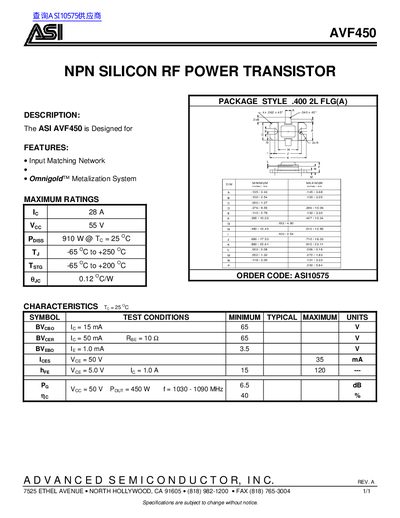

This document is the datasheet of ASI AVF450. It introduces the features and characteristics of the product, including BVCBO, BVCER, BVEBO, ICES, hFE, PG, ηηC, IC, VCC, PDISS, TJ, TSTG, θθJC, PACKAGE STYLE, ORDER CODE, DIM, etc.
The ASI AVF450 is an NPN Silicon RF Power Transistor manufactured by Advanced Semiconductor, Inc. It features an integrated Input Matching Network and utilizes the Omnigold™ Metalization System for performance.
Key electrical characteristics include a maximum collector-emitter voltage (BVceo) of 65V, a typical power dissipation of 450W at Tc = 25°C, and an operating temperature range from -65°C to +250°C. The device is housed in a .400 2L FLG(A) package.
| Device Type | NPN Silicon RF Power Transistor |
|---|---|
| Collector-Emitter Voltage (BVceo) | 65 V |
| Power Dissipation (Poiss) | 450 W @ Tc = 25°C |
| Operating Temperature Range (Ty) | -65 °C to +250 °C |
| Storage Temperature Range (Tste) | -65 °C to +200 °C |
| Thermal Resistance Junction-to-Case (Ruc) | 0.12 °C/W |
The order code for this device is ASI10575.
Yes, it features an integrated Input Matching Network.
