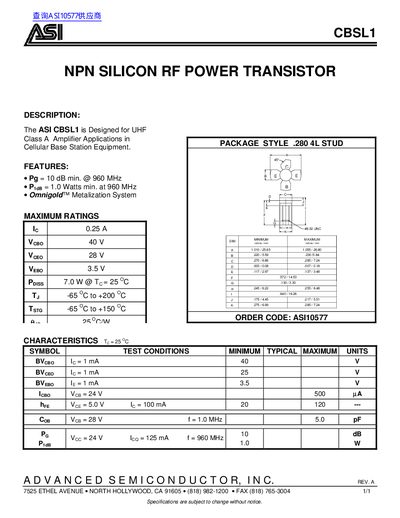

The document describes the features and characteristics of the ASI CBSL1 model, which is designed for UHF Class A amplifier applications in cellular base station equipment.
The ASI CBSL1 is an NPN silicon RF power transistor specifically designed for use as a final stage device in UHF Class A amplifiers within cellular base station equipment. It features the Omnigold™ Metalization System and is packaged in a .280 4L stud style.
| Package Style | .280 4L STUD |
|---|---|
| Power Gain (Pg) | 10 dB min. @ 960 MHz |
| Output Power (Pigs) | 1.0 Watts min. at 960 MHz |
| Collector Current (Ic) | 0.25 A |
| Collector-Emitter Voltage (Vceo) | 28 V |
The minimum power gain is 10 dB at 960 MHz.
The device provides a minimum of 1.0 Watts at 960 MHz.
