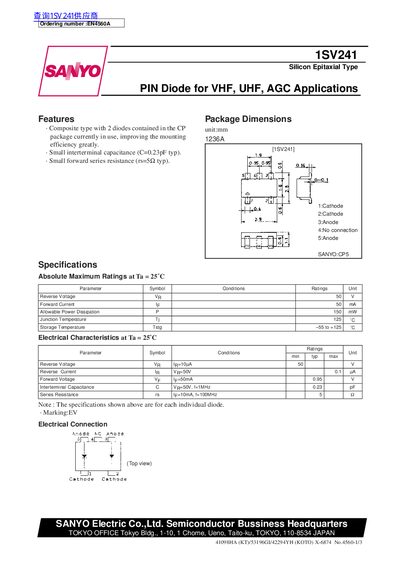

1SV241 is a PIN diode produced by SANYO. It is mainly used in VHF, UHF and AGC applications. This product is a composite type with 2 diodes contained in the CP package currently in use, greatly improving the mounting efficiency. In addition, this product also has the characteristics of small interterminal capacitance and small forward series resistance.
The document describes the SANYO 1SV241, a composite type Silicon Epitaxial Type PIN Diode intended for VHF, UHF, and AGC applications. It features two diodes contained in a single CP unit package designed to improve mounting efficiency.
Key specifications include an absolute maximum reverse voltage of 50V, a forward current rating of 50mA, and an allowable power dissipation of 150mW at Ta = 25°C. The device exhibits small interterminal capacitance (typical 0.23pF) and low series resistance.
| Forward Current (IF) | 50 mA |
|---|---|
| Allowable Power Dissipation (P) | 150 mW |
| Junction Temperature | 125 C |
| Storage Temperature (Tstg) | -55 to +125 *C |
| Interterminal Capacitance (C) | 0.23 pF |
The absolute maximum rating for forward current is 50 mA.
The allowable power dissipation is rated at 150 mW when the ambient temperature is 25°C.
