1SV246 is a PIN diode produced by SANYO. It is mainly used in VHF, UHF, AGC and other fields. The diode uses a very small-sized package, which facilitates high-density mounting and allows 1SV246-applied equipment to be made smaller. In addition, 1SV246 has the characteristics of small package with 2 diodes in series, small interterminal capacitance, and small forward series resistance.

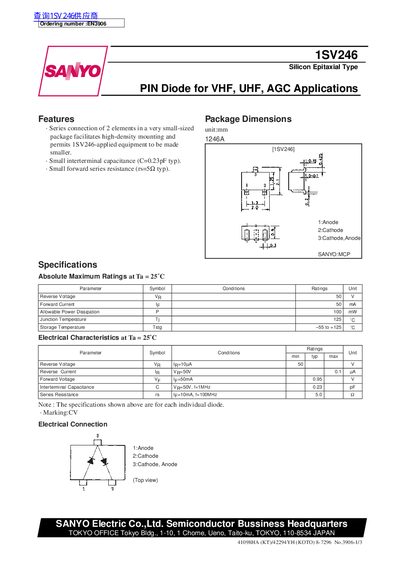

The document describes the SANYO 1SV246, a silicon epitaxial type PIN diode designed for VHF, UHF, and AGC applications. It features a very small-sized unit package that facilitates high-density mounting and allows equipment to be made smaller. The device includes two elements connected in series within this compact form factor.
| Forward Current | 50 mA |
|---|---|
| Allowable Power Dissipation | 100 mW |
| Storage Temperature | -55 to +125 C |
| Reverse Current | 0.1 uA |
| Forward Voltage | 0.95 V |
| Interterminal Capacitance | 0.23 pF |
The absolute maximum forward current rating is 50 mA.
The typical interterminal capacitance is 0.23 pF.
The allowable power dissipation is 100 mW and the maximum junction temperature is 125 C.
