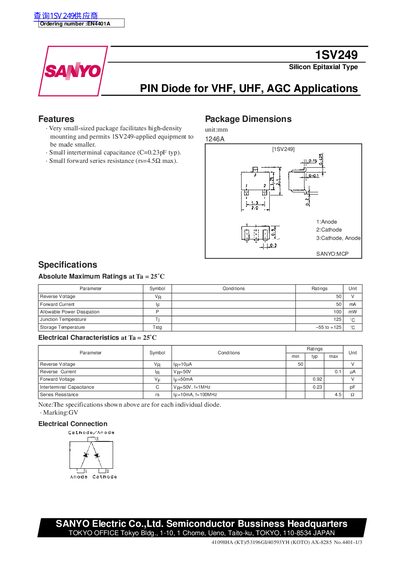

This document describes the specifications and characteristics of the 1SV249 PIN diode produced by SANYO Electric Co., Ltd. This PIN diode is suitable for VHF, UHF, and AGC applications, and features a very small package size, facilitating high-density mounting and allowing for smaller 1SV249-applied equipment. It also has small interterminal capacitance and small forward series resistance.
This document is a technical datasheet for the SANYO 1SV249, a silicon epitaxial type PIN diode designed for VHF, UHF, and AGC (Automatic Gain Control) applications. The device features a very small-sized package to facilitate high-density mounting and includes low interterminal capacitance of 0.23pF typical.
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Allowable Power Dissipation | 100 mW |
| Junction Temperature | 125 C |
| Storage Temperature | -55 to +125 C |
| Interterminal Capacitance | 0.23 pF typ |
| Series Resistance | 4.5 Ohm max |
The absolute maximum reverse voltage rating is 50 V.
The typical interterminal capacitance is 0.23 pF when the reverse voltage is 50 V and frequency is 1 MHz.
The allowable power dissipation is 100 mW and the maximum junction temperature is 125 °C.
