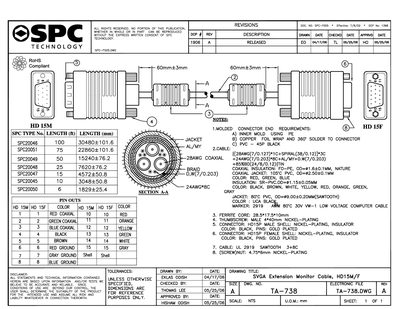

The SPC20051 is a low‑voltage computer cable designed for video and data connections. It complies with RoHS requirements and uses a HD15 male/female connector system.
The cable is offered in lengths up to 75 ft (22860+101.6 mm), with 28 AWG conductors, foam‑PE insulation, PVC jacket (45 P black), and a range of color options. Additional features include a ferrite core, thumb‑screw termination, and UL‑2919 saw‑tooth jacket construction.
| Length (ft) | 75 |
|---|---|
| Length (mm) | 22860+101.6 mm |
| Conductor gauge | 28 AWG |
| Insulation material | Foam PE |
| Jacket material | PVC |
| Maximum temperature | 80 °C |
| Color options | Black, Brown, White, Yellow, Red, Orange, Green |
| Connector type | HD15 male/female |
| Ferrite core dimensions | 28.5 × 17.5 × 10 mm |
The SPC20051 cable is 75 ft long (approximately 22860+101.6 mm).
It is offered in black, brown, white, yellow, red, orange, and green.
It uses HD15 male and female connectors.
