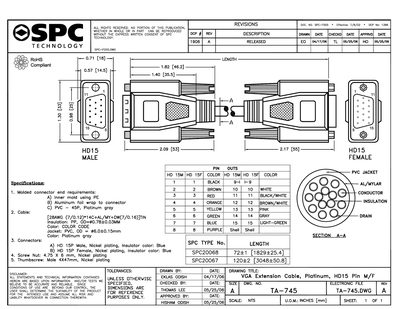

The SPC20068 is a VGA extension cable featuring HD15 (VGA) male and female connectors. The document provides detailed mechanical and electrical specifications, including connector finishes, cable construction, and dimensional tolerances.
Key specifications include a cable length of 1.82 units, HD15P male and female connectors with nickel plating and blue insulators, a 2BAWG cable construction, and PVC jacket with an outer diameter of 6.0 mm plus tolerance. Additional hardware dimensions such as a 4.75 × 6 mm screw nut and a 4 × 47 mm thumbscrew are also listed.
| Connector (Male) | HD15P Male, Nickel plating, Insulator color: Blue |
|---|---|
| Connector (Female) | HD15P Female, Nickel plating, Insulator color: Blue |
| Cable Construction | 2BAWG (7/0.12)*14C+AL/MY+DW(7/0.16) |
| Screw Nut Size | 4.75 × 6 mm |
| Thumbscrew Size | 4 × 47 mm |
| Jacket Material | PVC, OD = 6.0 + 0.15 mm |
The cable uses HD15P male and female connectors, both nickel plated with blue insulators.
The cable is built as 2BAWG (7/0.12)*14C+AL/MY+DW(7/0.16).
The screw nut measures 4.75 × 6 mm.
