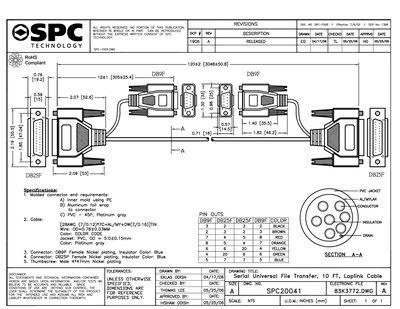

The SPC20041 data sheet outlines the technical specifications for the product, including compliance statements, revision history, and drawing references. It notes RoHS compliance and provides the document number and effective date.
Detailed connector information is included, such as molded connector end requirements, cable construction, wire and jacket dimensions, color codes, and the specific DB9F and DB25F connector types. The sheet also lists material finishes like nickel plating and color of insulators.
| RoHS Compliance | Yes |
|---|---|
| Connector Types | DB9F, DB25F |
| Wire Outer Diameter | 0.78 ± 0.03 mm |
| Jacket Outer Diameter | 5.0 ± 0.15 mm |
Yes, the data sheet states that the SPC20041 is RoHS compliant.
The sheet lists DB9F and DB25F connectors for the SPC20041.
