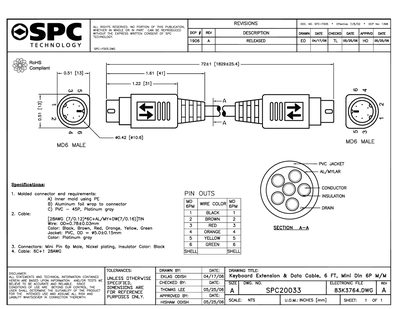

This data sheet describes the SPC20033 keyboard extension and data cable, a 6‑foot cable with a Mini‑DIN 6‑pin male connector. It includes details on the cable construction, wire gauge, jacket material, and color options.
Technical information such as connector type, wire dimensions, and RoHS compliance is provided, along with drawing references and revision history for manufacturing and quality control purposes.
| Cable length | 6 FT |
|---|---|
| Connector type | Mini DIN 6‑pin male |
| Wire gauge | 28 AWG |
| Jacket material | PVC |
| Available wire colors | Black, Brown, Red, Orange, Yellow, Green |
The cable is 6 feet long.
It uses a Mini‑DIN 6‑pin male connector.
The cable uses 28 AWG wire.
Yes, the document states RoHS compliance.
