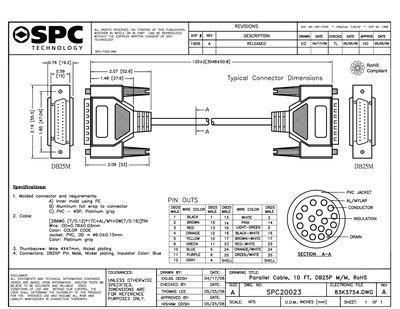

The SPC20023 data sheet provides detailed specifications for a DB25P male connector assembly. It lists material requirements, connector dimensions, cable construction, wire gauge and color codes, as well as thumbscrew details and RoHS compliance.
Key information includes PVC jacket material, 2BAWG cable construction, specific wire color codes, and nickel‑plated hardware. The document also contains revision history and disclaimer notes for proper use.
| Jacket material | PVC |
|---|---|
| Connector type | DB25P Pin Male, nickel plating |
| Thumbscrew size | Male 4×47 mm, nickel plating |
| Cable construction | 2BAWG (7/0.12) with aluminum/mylar shielding |
The SPC20023 uses a DB25P male connector with nickel plating.
The cable jacket is made of PVC.
The thumbscrew is a male 4 × 47 mm screw with nickel plating.
