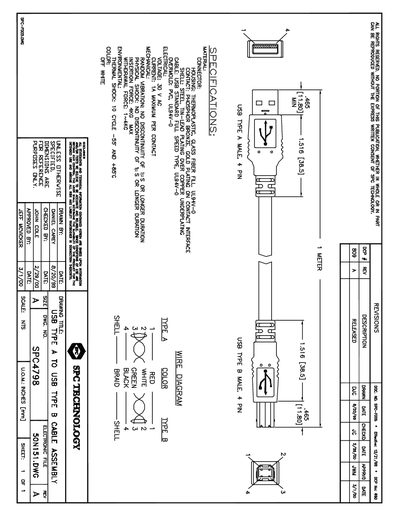

The SPC4798 is a USB Type‑A to USB Type‑B cable assembly designed for full‑speed USB connections. The document provides detailed material, electrical, mechanical and environmental specifications for the product.
Key specifications include a 30 V AC voltage rating, 1 A maximum current per contact, insertion force of 4 kg max, and withdrawal force of 1‑4 kg. Materials are thermoplastic with glass‑fiber fill (UL94V‑0) and contacts are phosphor bronze with gold plating. The cable meets USB full‑speed standards and is suitable for a range of industrial applications.
| Voltage rating | 30 V AC |
|---|---|
| Maximum current per contact | 1 A |
| Insertion force | 4 kg max |
| Withdrawal force | 1–4 kg |
| Thermal shock rating | -55 °C to +85 °C, 10 cycles |
| Color | Off white |
The cable is rated for 30 V AC.
It can carry up to 1 A per contact.
An insertion force of up to 4 kg is required.
