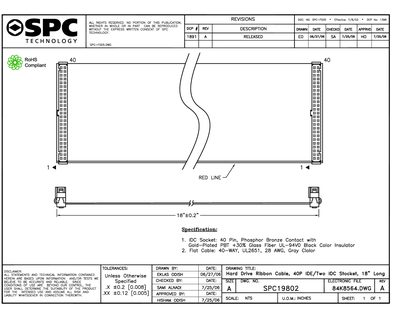

The SPC19802 datasheet describes a 40‑pin IDC socket and a 40‑way flat cable assembly. Detailed mechanical and material specifications are provided, including contact materials, insulation type and RoHS compliance.
The document also lists revision history, drawing information, tolerances and the responsible engineering personnel. All statements are subject to user verification for intended use.
| IDC Socket | 40 Pin, Phosphor Bronze Contact with Gold‑Plated PBT +30% Glass Fiber, UL‑94V0 Black Color Insulator |
|---|---|
| Flat Cable | 40‑WAY, UL‑2651, 28 AWG, Gray Color |
| RoHS Compliance | 40 |
| Tolerance X | +0.2 [0.008] |
| Tolerance XX | +£0.12 [0.005] |
The IDC socket is a 40‑pin connector with phosphor bronze contacts, gold‑plated PBT, 30% glass fiber reinforcement, and UL‑94V0 black color insulator.
Tolerance X is +0.2 [0.008] and tolerance XX is +£0.12 [0.005].
Yes, it is RoHS 40 compliant.
Hisham Odish approved the drawing on 7/25/06.
