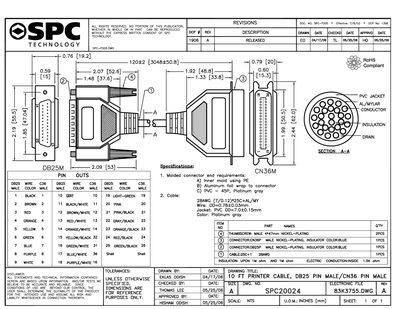

This data sheet provides the mechanical and electrical specifications for the SPC20024 connector, including dimensions, materials, pin assignments, and cable requirements. It also lists revision information and compliance statements.
The document notes RoHS compliance, PVC jacket material, and detailed connector types such as DB25M and CN36M, along with color and insulation resistance values.
| RoHS compliance | Compliant |
|---|---|
| Connector type (primary) | DB25M |
| Connector type (secondary) | CN36M |
| Cable gauge | 2BAWG (7/0.12)*25C-+AL/MY |
| Jacket material | PVC |
| Color | Platinum gray |
Yes, the data sheet states it is RoHS compliant.
The sheet lists DB25M and CN36M connector types.
The specified cable gauge is 2BAWG (7/0.12)*25C-+AL/MY.
