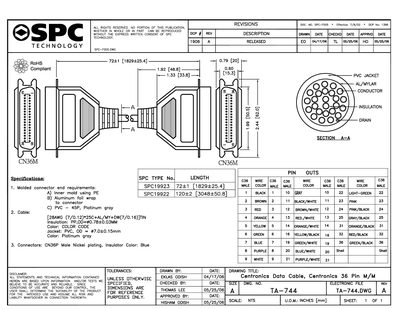

This data sheet describes the SPC19923 cable assembly, including its dimensions, material composition, and connector configurations. It lists the pin‑out assignments, color codes, and wiring details for the product.
The document also notes compliance with RoHS, specifies the insulation (PP) and jacket (PVC) materials, and provides the cable gauge (28 AWG) and connector type (CN36P male with nickel plating).
| Insulation material | PP |
|---|---|
| Jacket material | PVC |
| Connector type | CN36P Male Nickel plating |
| Cable gauge | 28 AWG |
The SPC19923 uses a CN36P male connector with nickel plating.
