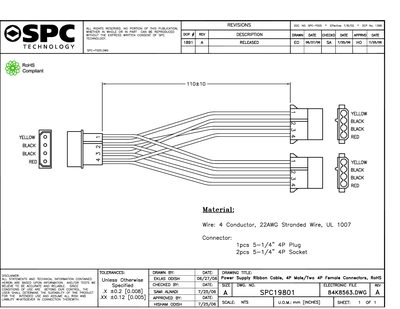

This data sheet provides the specifications for the SPC19801 power‑supply ribbon cable. It lists the wire construction, connector types, colour coding and compliance information.
The document includes revision data, drawing numbers and approval dates, confirming that the cable meets RoHS requirements and is built with UL‑listed materials.
| Wire type | 4 Conductor, 22AWG Stranded Wire, UL 1007 |
|---|---|
| Plug connector | 5‑1/4" 4P Plug |
| Socket connector | 5‑1/4" 4P Socket |
| RoHS compliance | Compliant |
The cable uses a 4‑conductor, 22 AWG stranded wire that is UL‑1007 listed.
Yes, the SPC19801 cable is RoHS compliant.
It includes a 5‑1/4" 4‑pole plug and a matching 5‑1/4" 4‑pole socket.
