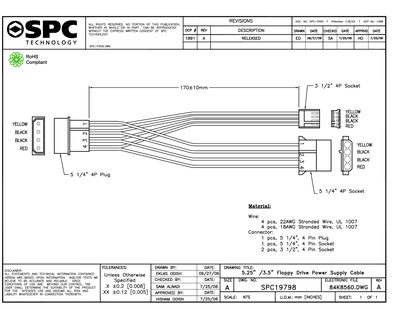

This datasheet provides the mechanical and electrical specifications for the SPC19798 connector assembly. It lists the socket and plug dimensions, wire gauges, and connector part counts used in the product.
The document also notes compliance information, including RoHS certification, and includes revision history and drawing references for manufacturing and quality control.
| Socket size | 3 1/2" 4‑pin |
|---|---|
| Plug size | 5 1/4" 4‑pin |
| Additional socket size | 5 1/4" 4‑pin |
| Wire gauge (type 1) | 22 AWG stranded, UL 1007 |
| Wire gauge (type 2) | 18 AWG stranded, UL 1007 |
| Plug connector count | 1 piece, 5 1/4", 4‑pin |
| Socket connector count (type A) | 1 piece, 5 1/4", 4‑pin |
| Socket connector count (type B) | 2 pieces, 3 1/2", 4‑pin |
| RoHS compliance | Compliant |
The connector uses 22 AWG stranded wire and 18 AWG stranded wire, both UL 1007 rated.
Yes, the product is listed as RoHS compliant.
