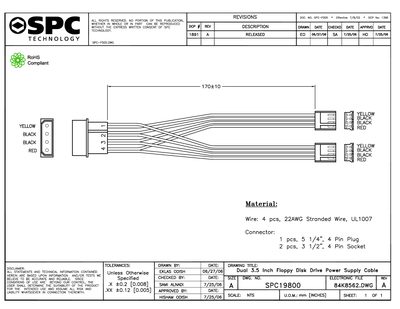

The SPC19800 data sheet provides a concise overview of the product's mechanical and electrical components. It lists the required wire, connector types, and material details needed for assembly.
Key information includes the wire gauge (22 AWG stranded, UL1007), connector part numbers, and color‑coded wiring layout. The document also contains revision history and compliance notes such as RoHS compliance.
| Wire | 4 pcs, 22AWG Stranded Wire, UL1007 |
|---|---|
| Connector (Plug) | 1 pcs, 5 1/4", 4 Pin Plug |
| Connector (Socket) | 2 pcs, 3 1/2", 4 Pin Socket |
The SPC19800 uses four pieces of 22 AWG stranded wire that meet UL1007 standards.
The package includes one 5 ¼‑inch 4‑pin plug and two 3 ½‑inch 4‑pin sockets.
