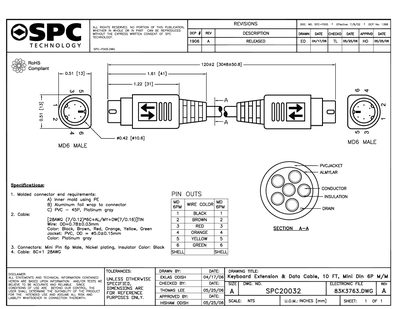

The SPC20032 data sheet provides detailed specifications for a 10‑ft mini‑Din 6‑pin male connector cable, including conductor requirements, cable construction, wire dimensions, and jacket material. It also lists revision history and compliance information such as RoHS.
Key features include a PVC jacket, nickel‑plated mini‑pin 6p male connector, and a wire outer diameter of approximately 0.784 mm. The document outlines color coding for the conductors and tolerances for the molded connector end.
| Wire outer diameter | 0.7840.03 mm |
|---|---|
| Jacket material | PVC |
| Connector type | Mini Pin 6p Male, nickel plated |
| Cable construction | 6C+1 28AWG |
| Conductor colors | Black, Brown, Red, Crange, Yellow, Green |
The model number is SPC20032.
It uses a Mini Pin 6‑position male connector with nickel plating.
The wire outer diameter is approximately 0.784 mm.
