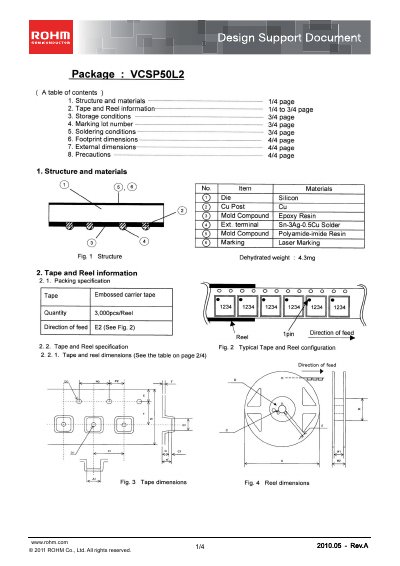

This document is the design support document for ROHM's VCSP50L2 (BD88400GUL), mainly introducing the product's features and parameters
The ROHM VCSP50L2 design support document provides detailed information on the package structure, materials, and recommended handling procedures. It includes specifications for tape and reel packaging, storage conditions, and soldering profiles to ensure reliable assembly.
Additional sections describe footprint and external dimensions, marking conventions, and precautions for handling and under‑fill material. The document also outlines packing and shipping styles, as well as test methods such as peel‑back strength and missing‑IC criteria.
| Package type | VCSP50L2 |
|---|---|
| Quantity per reel | 3,000 pcs |
| Dehydrated weight | 4.3 mg |
| Recommended storage temperature | 5 °C to 30 °C |
| Recommended storage humidity | 40 % to 70 % RH |
| Specified storage period | 1 year |
| Maximum reflow temperature | 260 °C |
| Pre‑heat temperature range | 130 °C to 190 °C |
| Soldering temperature range | 220 °C to 230 °C |
| Cover‑tape peelback strength | 0.2 N to 0.7 N |
The recommended storage temperature is 5 °C to 30 °C.
Each reel contains 3,000 pieces of the VCSP50L2 package.
The reflow profile allows a maximum temperature of 260 °C, with pre‑heat at 130 °C‑190 °C and soldering at 220 °C‑230 °C.
The package is specified for a storage period of 1 year.
