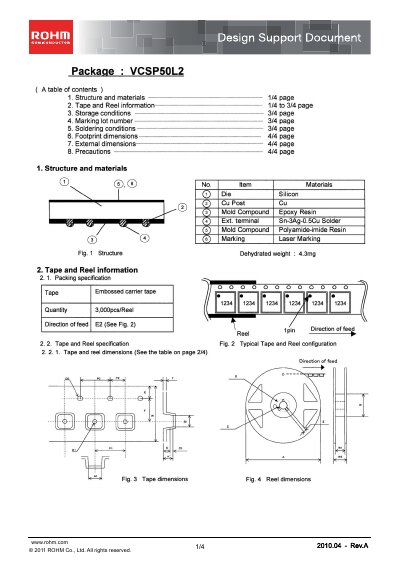

Introducing the VCSP50L2(BD88215GUL) VDC/DC converter.
This design support document describes the VCSP50L2 semiconductor package, including its structure, materials, and detailed mechanical dimensions. It also covers packaging options such as tape‑and‑reel, packing style, and shipping specifications.
Key information includes recommended storage conditions, soldering temperature profiles, and handling precautions, helping designers integrate the component safely and reliably into their products.
| Dehydrated weight | 4.3 mg |
|---|---|
| Recommended storage temperature | 5 to 30 °C |
| Recommended storage humidity | 40 to 70 % RH |
| Specified storage period | 1 year |
| Soldering temperature range | 220 °C to 230 °C |
| Preheating temperature range | 130 °C to 190 °C |
| Maximum reflow temperature | 260 °C |
| Tape‑and‑reel quantity per reel | 3,000 pcs |
| Cover tape peelback strength | 0.2 to 0.7 N |
The recommended storage temperature is 5 °C to 30 °C and the humidity is 40 % to 70 % RH.
The soldering temperature should be kept between 220 °C and 230 °C.
Each reel holds 3,000 pieces of the VCSP50L2 package.
The cover tape peelback strength is specified as 0.2 N to 0.7 N.
