This document describes the features and characteristics of ROHM's VCSP50L1 (BD5461GUL) product.

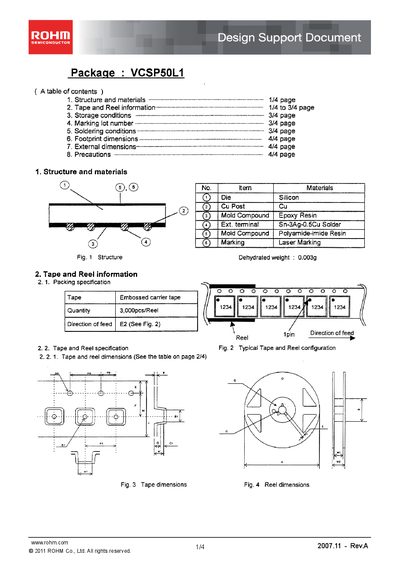

The ROHM VCSP50L1 design support document provides detailed information on the package structure, materials, and handling precautions. It includes tape‑and‑reel packaging specifications, storage conditions, marking details, and recommended soldering profiles.
Technical data such as footprint and external dimensions, dehydrated weight, and recommended reflow temperature ranges are listed to aid PCB designers and assembly engineers in integrating the VCSP50L1 package into their products.
| Package type | VCSP50L1 |
|---|---|
| Dehydrated weight | 0.003 g |
| Storage temperature | 5 °C to 30 °C |
| Storage humidity | 40 % to 70 % RH |
| Recommended reflow peak temperature | 260 °C max |
| Preheating temperature range | 130 °C to 190 °C |
| Soldering temperature range | 220 °C to 230 °C |
| Units per reel | 3,000 pieces |
Store the package at 5 °C to 30 °C with 40 % to 70 % relative humidity for up to one year.
