The RRH050P03 Pch -30V -5A Power MOSFET is a power MOSFET produced by ROHM. It has low on-resistance, built-in G-S Protection Diode, small package and other features.
The RRHO50P03 is a 30 V, 5 A power MOSFET featuring low on‑resistance, a built‑in gate‑source protection diode, and a RoHS‑compliant, lead‑free SOP8 package. It is intended for use in general‑purpose electronic equipment such as audio‑visual, office‑automation, and communication devices.

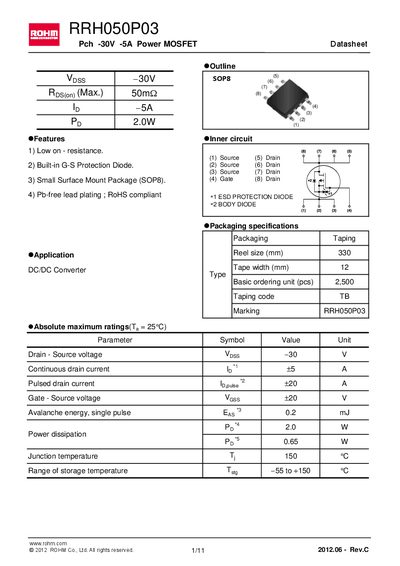

The datasheet provides absolute maximum ratings, detailed electrical characteristics, thermal resistance values, package dimensions, and typical application curves to aid designers in selecting and integrating the device safely.
| Drain‑Source voltage (VDS) | -30 V |
|---|---|
| Continuous drain current (ID) | 5 A |
| Junction temperature (Tj) | 150 °C |
| Thermal resistance, junction‑ambient (typical) | 62.5 °C/W |
| Package | SOP8 |
The device can handle a continuous drain current of 5 A.
It is supplied in a surface‑mount SOP8 package.
Typical thermal resistance is 62.5 °C/W.
