RRH100P03 is a -30V -10A power MOSFET from ROHM, which features low on-resistance, built-in protection diode, small package (SOP8) and is RoHS compliant. It is suitable for DC/DC converter applications.
The RRH100P03 is a low‑on‑resistance, -30 V, -10 A power MOSFET offered in a compact SOP8 surface‑mount package. It includes built‑in gate‑source protection and meets RoHS requirements.

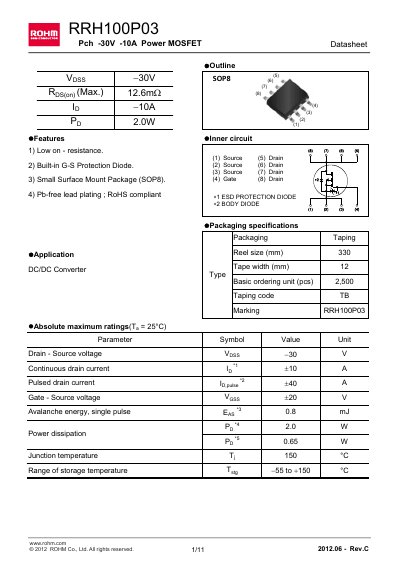

The datasheet provides absolute maximum ratings, detailed electrical characteristics, thermal resistance data, packaging information, mechanical dimensions and application notes, followed by a legal notice.
| Drain‑Source voltage (VDS) | -30 V |
|---|---|
| Continuous drain current (ID) | +10 A |
| Power dissipation (PD) | 2.0 W |
| Junction temperature (Tj) | 150 °C |
| Thermal resistance, junction‑ambient (RθJA) | 62.5 °C/W |
| Input capacitance (Ciss) | 3600 pF |
| Output capacitance (Coss) | 450 pF |
| Gate threshold voltage (VGS(th)) | -1.0 to -2.5 V |
| Package | SOP8 |
| Storage temperature range | -55 °C to +150 °C |
The device is rated for a maximum drain‑source voltage of -30 V.
It can conduct a continuous drain current of up to +10 A.
The MOSFET is supplied in a Small Outline Package 8 (SOP8).
The specified storage temperature range is -55 °C to +150 °C.
