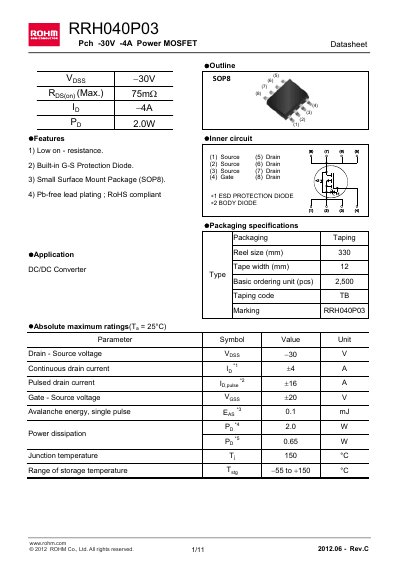

RRH040P03 Pch -30V -4A Power MOSFET is a low-resistance power MOSFET produced by ROHM. It has a rated voltage of -30V, a maximum current of 4A, and a maximum power consumption of 2.0W.
The RRHO040P03 is a low‑on‑resistance power MOSFET supplied in a SOP8 surface‑mount package. It features a built‑in G‑S protection diode and complies with RoHS standards.
The document lists absolute maximum ratings, detailed electrical characteristics such as drain‑source voltage, continuous drain current, and thermal resistance, as well as mechanical dimensions and packaging information.
| Drain‑Source voltage (VDS) | -30 V |
|---|---|
| Continuous drain current (ID) | +4 A |
| Power dissipation (PD) | 2.0 W |
| Maximum junction temperature (Tj) | 150 °C |
| Package | SOP8 |
| Thermal resistance, junction‑ambient (typ.) | 62.5 °C/W |
| Gate‑Source voltage (VGS) | +20 V |
The continuous drain current is +4 A.
It is supplied in a SOP8 surface‑mount package.
The maximum junction temperature is 150 °C.
Typical thermal resistance is 62.5 °C/W.
