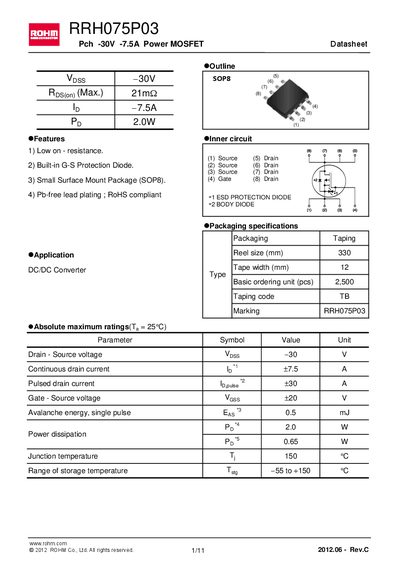

This document introduces the RRH075P03 Pch -30V -7.5A Power MOSFET, which features low on-resistance, built-in G-S protection diode, and small surface mount package.
The RRHO075P03 is a low‑on‑resistance power MOSFET featuring a built‑in G‑S protection diode and a compact SOP8 surface‑mount package. It complies with RoHS and is lead‑free.
The datasheet provides absolute maximum ratings, thermal resistance values, detailed electrical characteristics, and mechanical dimensions, along with packaging information for tape‑and‑reel handling.
| Drain‑Source Voltage (VDS) | -30 V |
|---|---|
| Gate‑Source Voltage (VGS) Max | +20 V |
The maximum drain‑source voltage is -30 V.
