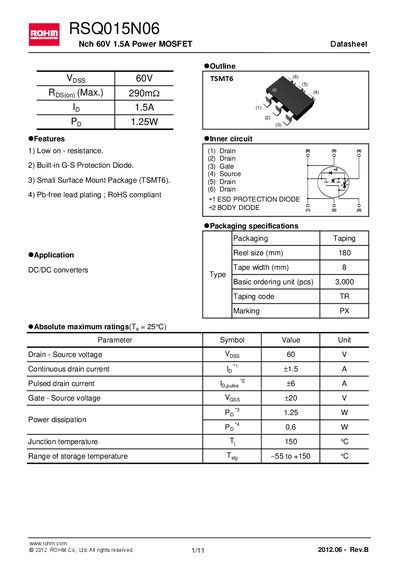

RSQ015N06 is a Nch 60V 1.5A Power MOSFET from ROHM. Its features include low on-resistance, built-in G-S protection diode, small surface mount package (TSMT6), lead-free lead plating and RoHS compliance.
The RSQ015N06 is a 60 V, 1.5 A power MOSFET offered by ROHM in a compact TSMT6 surface‑mount package. The datasheet provides electrical characteristics, thermal data, and mechanical dimensions for designers.
Key features include low on‑resistance, a built‑in ESD protection diode, and compliance with RoHS. Absolute maximum ratings, typical performance curves, and packaging details are listed to aid circuit design and reliability analysis.
| Drain‑Source voltage (VDS) max | 60 V |
|---|---|
| Continuous drain current (ID) at 25 °C | 1.5 A |
| Pulsed drain current (ID) max | 6 A |
| Power dissipation (PD) max | 1.25 W |
| Junction temperature (Tj) max | 150 °C |
| Package | TSMT6 (surface‑mount) |
The RSQ015N06 can withstand up to 60 V between drain and source.
The device is rated for a continuous drain current of 1.5 A.
Yes, the package is lead‑free and RoHS compliant.
