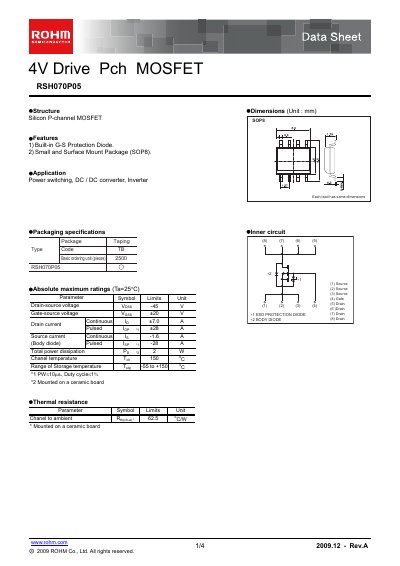

This is a datasheet of 4V Drive Pch MOSFET RSH070P05. It has the following features: 1) Built-in G-S Protection Diode. 2) Small and Surface Mount Package (SOP8). Applications include power switching, DC/DC converter, inverter, etc.
The RSH070P05 is a 4 V drive P‑channel MOSFET offered by ROHM in a small SOP‑8 surface‑mount package. It features a built‑in gate‑source protection diode and is intended for power‑switching applications such as DC‑DC converters and inverters.
The datasheet lists absolute maximum ratings (e.g., VDS = ‑45 V, VGS = +20 V), typical on‑resistance, gate charge, thermal resistance, and detailed electrical characteristics. Packaging information, dimensions, and test circuit diagrams are also included.
| Drain‑source voltage (VDS) | -45 V |
|---|---|
| Gate‑source voltage (VGS) | +20 V |
| Continuous drain current (ID) | +7.0 A |
| Total power dissipation (PD) | 2.2 W |
| Maximum junction temperature (Tj) | 150 °C |
| Storage temperature range (Tstg) | -55 °C to +150 °C |
| Typical total gate charge (Qg) | 34.0 nC |
The device is rated for a maximum drain‑source voltage of -45 V.
It is supplied in a small surface‑mount SOP‑8 package.
The MOSFET can handle a continuous drain current of up to +7.0 A.
Yes, it has a built‑in gate‑source protection diode.
