The SST6838 is an NPN general purpose transistor produced by ROHM Corporation. This transistor has a small physical size, low power consumption, and high current gain, making it suitable for use in a variety of electronic devices.

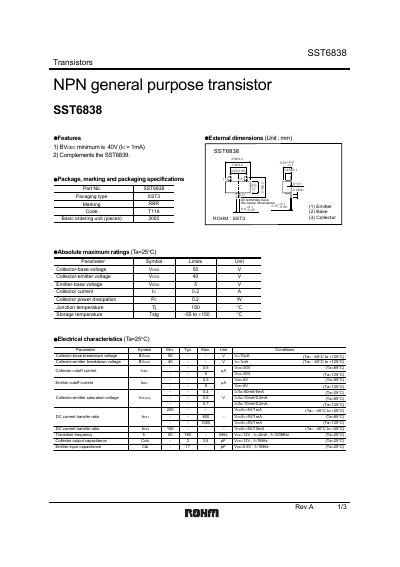

The SST6838 is an NPN general‑purpose transistor offered by ROHM. This datasheet provides its key electrical characteristics, absolute maximum ratings, and package information.
Typical applications include audio‑visual equipment, office automation, communications devices, and other electronic products. Users should consult the appendix for export control and usage notes.
| Collector‑emitter breakdown voltage (BVceo) | 40 V |
|---|---|
| Collector‑base breakdown voltage (BVcso) | 50 V |
| Maximum collector current (Ic) | 0.02 A |
| Collector power dissipation (Pc) | 0.2 W |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| Transition frequency (ft) | 180 MHz |
| Collector output capacitance (Cob) | 2 – 3.6 pF |
| Emitter input capacitance (Cib) | 0.17 pF |
The SST6838 can withstand up to 40 V between collector and emitter.
The device is rated for a maximum collector current of 0.02 A.
