US6T4 is a low frequency amplifier driver from Rohm Semiconductor. Its features are a large collector current and a maximum collector-emitter saturation voltage (VCE(sat)) of -250mV.
The US6T4 is a low‑frequency amplifier transistor offered by ROHM. It is intended for use in audio‑visual, office‑automation, communications, and general electronic equipment.

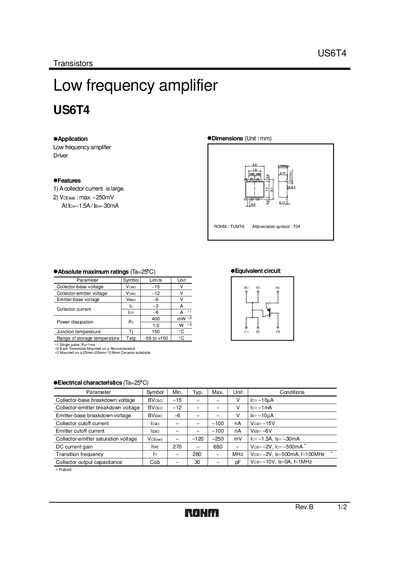

The document lists absolute maximum ratings, detailed electrical characteristics, and packaging specifications, including tape type and ordering unit. It also contains characteristic curves and legal notices for export control and usage restrictions.
| Collector‑base voltage (Vcbo) | 15 V |
|---|---|
| Collector‑emitter voltage (Vceo) | -12 V |
| Collector current (Ic) | 3 A |
| Power dissipation (Pc) | 400 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| Package tape type code | TR |
| Basic ordering unit | 3000 pieces |
The US6T4 can handle a collector current of up to 3 A.
The device is rated for a power dissipation of 400 mW.
It is supplied on tape with type code TR, in basic ordering units of 3000 pieces.
The transistor’s absolute maximum ratings are 15 V for collector‑base, -12 V for collector‑emitter, and -6 V for emitter‑base.
