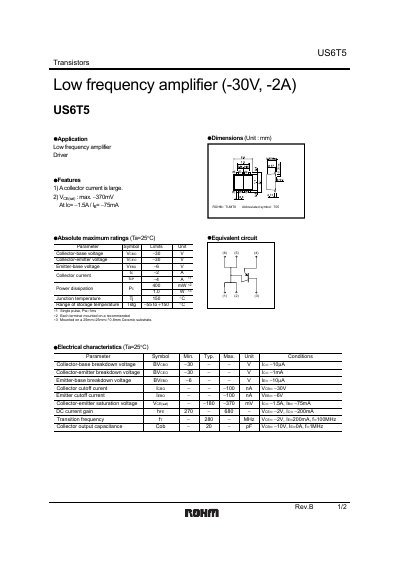

US6T5 is a low frequency amplifier with a large collector current and a low collector-emitter saturation voltage
The US6T5 is a low‑frequency amplifier transistor designed for driver applications. It offers a large collector current and is suitable for use in audio‑visual, office‑automation, communications, and other electronic equipment.
The document lists absolute maximum ratings, electrical characteristics such as voltage and current limits, transition frequency, and packaging specifications. It also includes application notes and export control information for users integrating the device into their designs.
| Collector‑emitter voltage (Vceo) | -30 V |
|---|---|
| Power dissipation (Pc) | 400 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| Transition frequency (fT) | 280 MHz |
| DC current gain (hFE) | 270‑680 |
The device can withstand up to -30 V between collector and emitter.
It is supplied in a tape‑and‑reel package with type code TR, basic ordering unit of 3000 pieces.
The storage temperature range is from -55 °C to +150 °C.
