This document describes the features and characteristics of the US6T6 transistor, which is primarily used as a low-frequency amplifier driver. The transistor has a large collector current and a low collector-emitter saturation voltage.

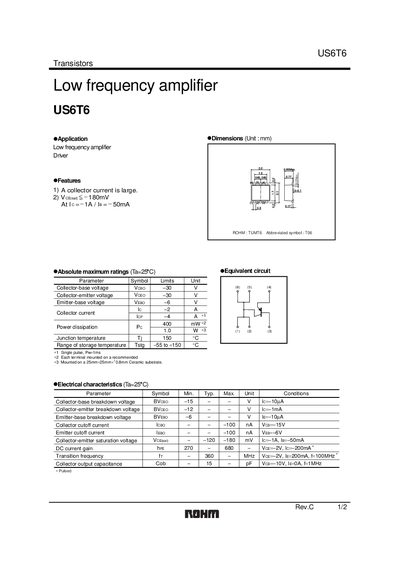

The US6T6 is a low‑frequency amplifier transistor designed for driver applications. The datasheet lists its key features, absolute maximum ratings, and typical electrical characteristics.
Key specifications include collector‑base voltage of 30 V, collector‑emitter voltage of 30 V, emitter‑base voltage of 6 V, a maximum collector current of 2 A, and a power dissipation rating of 10 W. Packaging information shows a 3000‑piece basic ordering unit and a ceramic substrate package.
The basic ordering unit is 3000 pieces.
