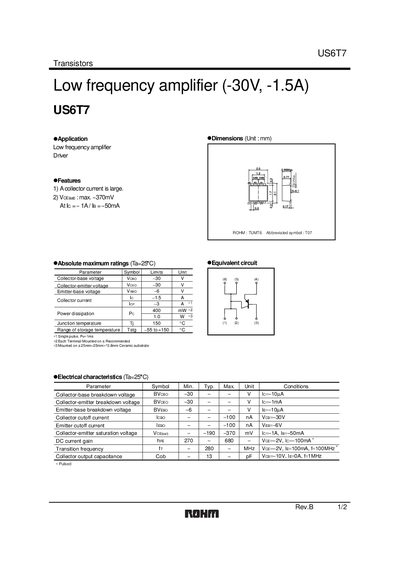

The document is about the US6T7 transistor. The US6T7 is a low-frequency amplifier suitable for driving low-frequency amplifiers. Its features include a large collector current and a maximum VCE(sat) of -370mV at IC = -1A / IB = -50mA.
The US6T7 is a low‑frequency power transistor designed for amplifier and driver applications. It offers a large collector current capability and is supplied in a TR‑type tape package.
Key specifications include a collector‑base voltage of –30 V, collector‑emitter voltage of –30 V, emitter‑base voltage of –6 V, a maximum collector current of 15 A, power dissipation of 10 W, and a transition frequency of 280 MHz. The device is rated for a junction temperature up to 150 °C and is supplied in reels of 3 000 units.
| Collector‑base voltage (Vcb0) | -30 V |
|---|---|
| Collector‑emitter voltage (Vce0) | -30 V |
| Emitter‑base voltage (Veb0) | -6 V |
| Maximum collector current (Ic) | 15 A |
| Power dissipation (Pc) | 10 W |
| Junction temperature (Tj) | 150 °C |
| Transition frequency (fT) | 280 MHz |
| DC current gain (hFE) | 270‑680 |
| Collector output capacitance (Cob) | 13 pF |
The US6T7 can handle a collector current of up to 15 A.
The US6T7 is supplied in a TR‑type tape package, with a basic ordering unit of 3 000 pieces.
The transistor has a transition frequency of 280 MHz.
