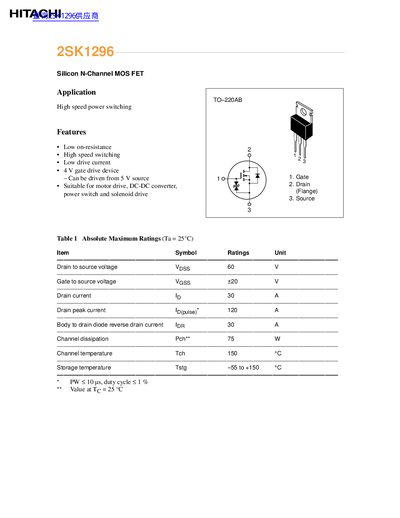

2SK1296 is a high-speed power switch with low on-resistance, high switching speed and low drive current. It can be driven from a 5V source and is suitable for motor drive, DC-DC converter, power switch and solenoid drive.
The 2SK1296 MOSFET is designed for high‑speed power switching applications such as motor drives, DC‑DC converters, and solenoid drivers. It features low on‑resistance, low drive current, and can be driven directly from a 5 V source.
Key specifications include a maximum drain‑source voltage of 60 V, continuous drain current of 30 A, typical on‑state resistance of 0.024 Ω, and input/output capacitances of 2250 pF and 1230 pF respectively. Thermal derating and switching characteristics are provided for various operating conditions.
| Drain‑to‑source voltage (VDS) | 60 V |
|---|---|
| Gate‑to‑source voltage (VGS) | +20 V |
| Continuous drain current (ID) | 30 A |
| Input capacitance (CISS) | 2250 pF |
| Output capacitance (COSS) | 1230 pF |
The device is rated for a maximum drain‑to‑source voltage of 60 V.
The MOSFET can handle a continuous drain current of 30 A.
