This document describes the features and characteristics of the 1.5V Drive Pch+Pch MOSFET TT8J21 produced by ROHM, including low on-resistance, high power package, and low voltage drive. The product is suitable for switching applications.

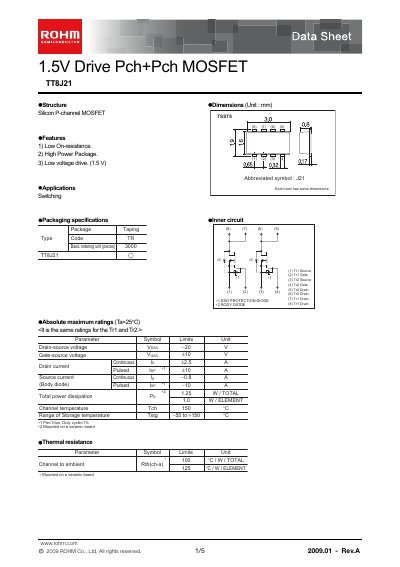

The ROHM TT8J21 is a 1.5 V drive P‑channel MOSFET presented in a high‑power package. The datasheet provides structural details, dimensions, key features such as low on‑resistance and low‑voltage drive, and typical application circuits.
Electrical specifications cover absolute maximum ratings, static and pulsed characteristics, capacitance values, and switching performance. Packaging information and measurement circuit diagrams are also included, along with safety notices and contact details for ROHM support. This manual is written in Chinese.
| Drain‑source voltage (VDS) | -10 V |
|---|---|
| Gate‑source voltage (VGS) | -4.5 V |
The maximum drain‑source voltage is -10 V.
