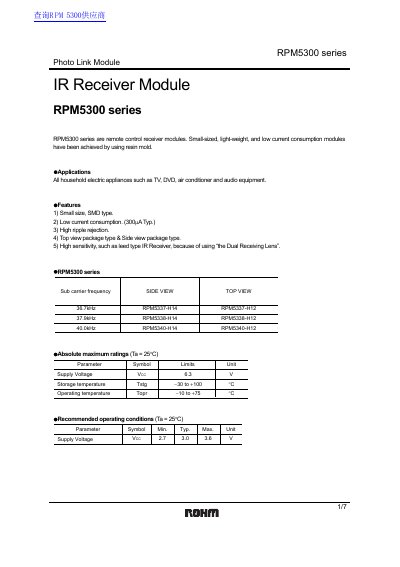

RPM5300 series are remote control receiver modules. They are small-sized, light-weight, and low current consumption modules. They have Top view package and Side view package two kinds of packaging.
The RPM5300 series Photo Link Module is a small‑size, SMD‑type IR receiver designed for household appliances such as TVs, DVD players, air conditioners and audio equipment. It offers low current consumption (300 µA typ.) and high ripple rejection, with dual‑lens optics for high sensitivity.
The datasheet lists absolute maximum ratings, recommended operating conditions, pin functions, electrical and optical characteristics, measurement methods, mechanical dimensions, and safety notes. It also includes a block diagram, terminal description, and application guidelines for proper grounding and environmental considerations.
| Supply Voltage (typical) | 3.0 V |
|---|---|
| Current consumption (typical) | 300 µA |
| Sub‑carrier frequency (top view) | 36.7 kHz |
| Package type | SMD |
| Absolute maximum supply voltage | 6.3 V |
The typical supply voltage is 3.0 V.
It consumes about 300 µA typical.
Connect the holder to the Ground (GND) of the PCB.
