2SA1036K/2SA1577/2SA854S is a medium power transistor produced by Panasonic, with a maximum rated voltage of 32V and a maximum current of 0.5A. It is suitable for low voltage and low power applications.

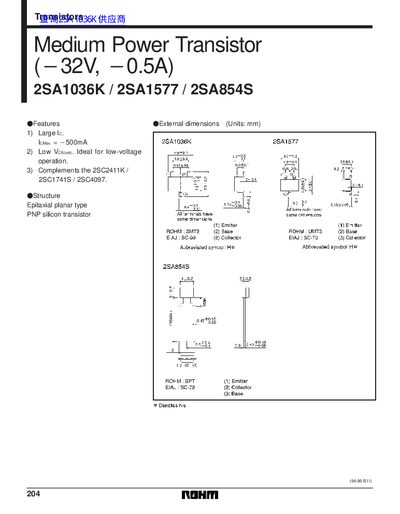

This handbook describes the electrical and mechanical characteristics of ROHM's medium‑power PNP transistors 2SA1036K, 2SA1577 and 2SA854S. It includes maximum ratings, typical performance parameters, packaging details, and characteristic curves useful for circuit designers.
Key features include a large collector current capability, low collector‑emitter saturation voltage, and a wide storage temperature range. The document also lists the standard 1‑piece (1P) surface‑mount package and ordering quantities.
| Junction temperature (Tj) | 150 °C |
|---|---|
| Storage temperature range (Tstg) | -55 °C to +150 °C |
| Collector power dissipation (Po) | 0.2 W |
| Collector current (Ic) | 0.5 A |
| Basic ordering unit | 5000 pieces |
| Package code | 1P |
The maximum junction temperature is 150 °C.
They can be stored from –55 °C up to +150 °C.
The basic ordering unit consists of 5 000 pieces.
The collector power dissipation is rated at 0.2 W.
