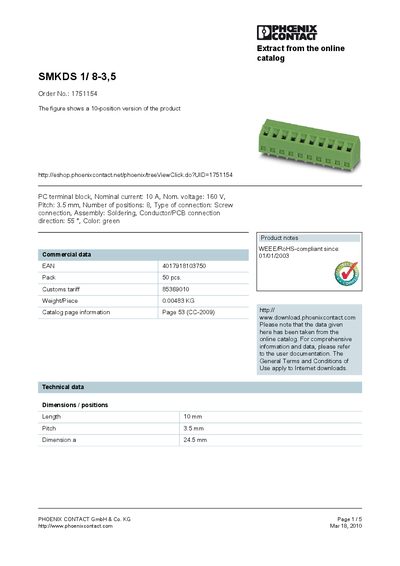

This is a PDF file about SMKDS 1/8-3.5 terminal block. The connector is green and has 8 positions. It has a rated current of 10A, a rated voltage of 160V, a screw connection type, a soldering assembly type, and a 55° conductor/PCB connection direction.
The SMKDS 1/8-3,5 is a 10‑position terminal block with a 3.5 mm pitch, designed for screw connection and soldering. It is rated for 10 A nominal current and 160 V nominal voltage, and complies with WEEE/RoHS regulations.
The data sheet provides dimensions, weight, certification details, accessory part numbers, and contact information for Phoenix Contact. It also includes a drilling plan and drawing for PCB integration.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 8 |
| Length | 10 mm |
| Weight per piece | 0.00483 kg |
| EAN | 4017918103750 |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 10 A.
It has 8 positions.
The pitch is 3.5 mm.
Yes, it has been RoHS compliant since 01/01/2003.
