PST 1,3/ 4-LH-5,0 is a connector produced by PHOENIX CONTACT, with a nominal current of 14 A, a rated voltage of 250 V, a pitch of 5 mm, a pin size of 1,3 mm, and a hole diameter of 1.5 mm. The connection method is welding.
The PST 1,3/4-LH-5,0 is a 4‑position, 5 mm pitch, solder‑type connector rated for 14 A and 250 V. It is supplied in black and is designed for compact mounting.

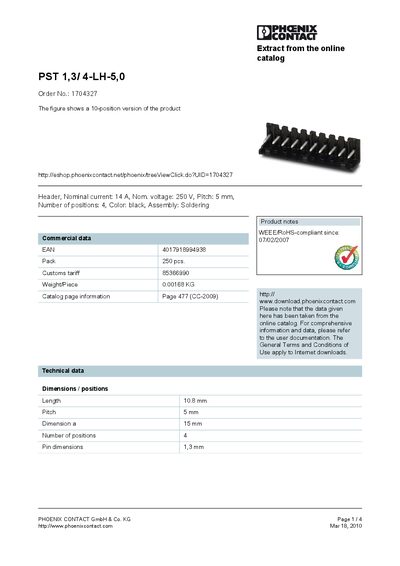

The leaflet provides detailed dimensions, electrical ratings, material data and certification information (UL, CUL, EN‑VDE). It also includes a drilling plan, derating diagram and packaging details such as weight and EAN code.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 4 |
| Color | black |
| Assembly method | Soldering |
| Length | 10.8 mm |
| Overall width (a) | 15 mm |
| Pin dimension | 1.3 mm |
| Weight per piece | 0.00168 kg |
| EAN | 4017918994938 |
| Package quantity | 250 pcs |
| Certifications | UL, CUL, EN‑VDE |
The connector is rated for a nominal current of 14 A.
It has four positions.
The pitch is 5 mm.
It is certified according to UL, CUL and EN‑VDE standards.
