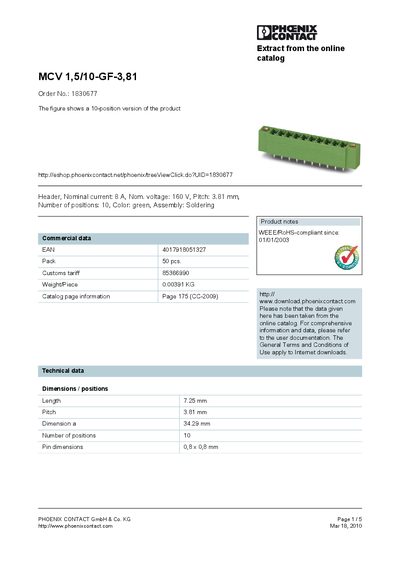

MCV 1,5/10-GF-3,81 is a 10-pin connector from PHOENIX CONTACT. It has a nominal current of 8A, a nominal voltage of 160V, a pitch of 3.81mm, a green color, and can be installed by soldering.
The MCV 1,5/10-GF-3,81 is a 10‑position green terminal block designed for soldering assembly. It offers a pitch of 3.81 mm and supports a nominal current of 8 A at 160 V.
The document lists detailed technical data such as dimensions, pin size, weight, and certifications, as well as compatible accessories and drawing information for installation and wiring.
| Nominal current | 8 A |
|---|---|
| Pitch | 3.81 mm |
| Number of positions | 10 |
| Length | 7.25 mm |
| Weight per piece | 0.00391 KG |
The pitch is 3.81 mm.
It has 10 positions.
The nominal current rating is 8 A.
The terminal block is green.
